ILCOSO

ILCOSO is a lightweight, safe, innovative, and modular handlebar bag mount that is designed to solve a number of problems typical of handlebar bags.

128.00

9 available

SKU HBICB Categories , , Tag
Close
Additional Information
Weight 0.35kg

Presentation

Unboxing & Setup

Technical specifications

Introduction

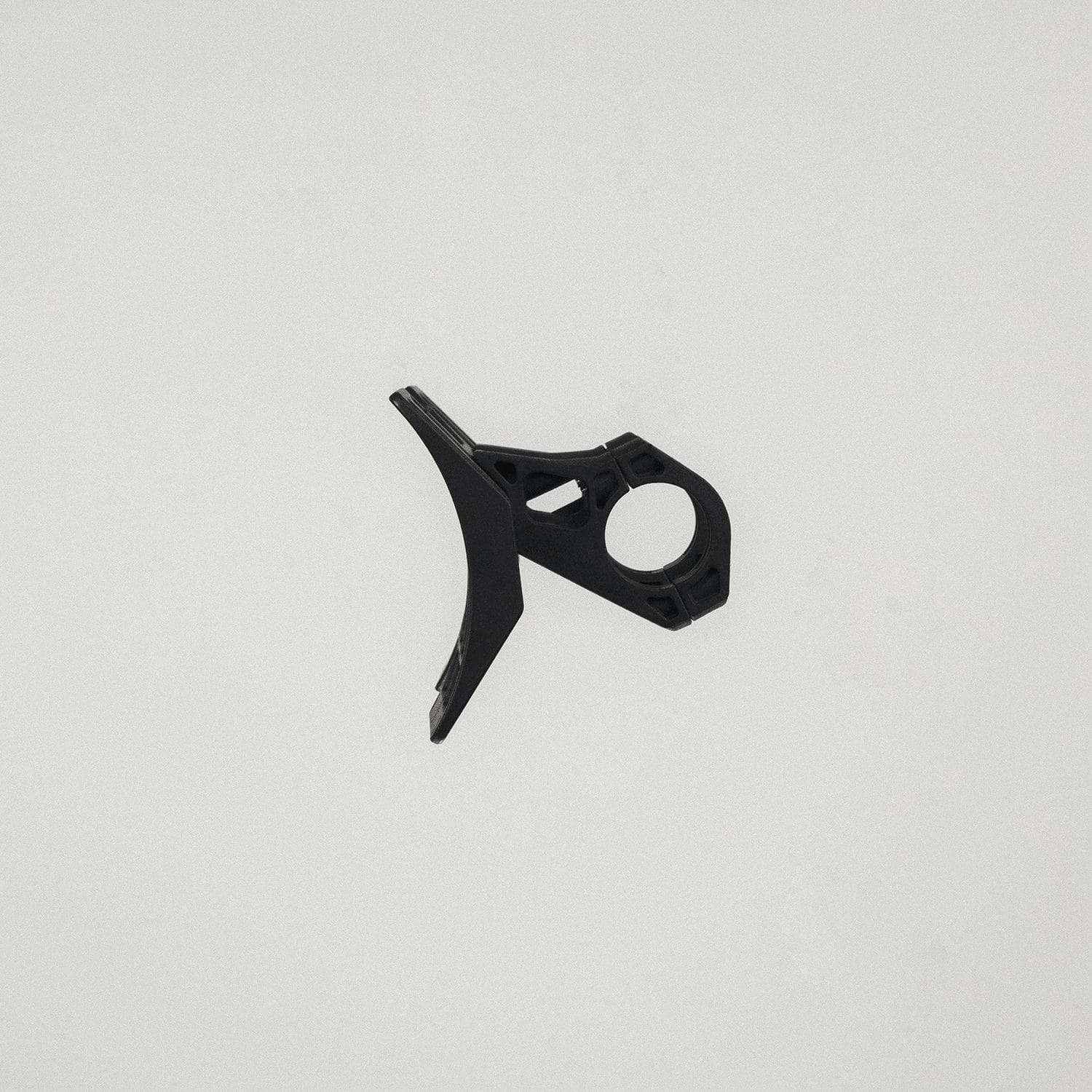

ILCOSO is a lightweight, safe, innovative, and modular handlebar bag mount that is designed to solve a number of problems typical of handlebar bags.

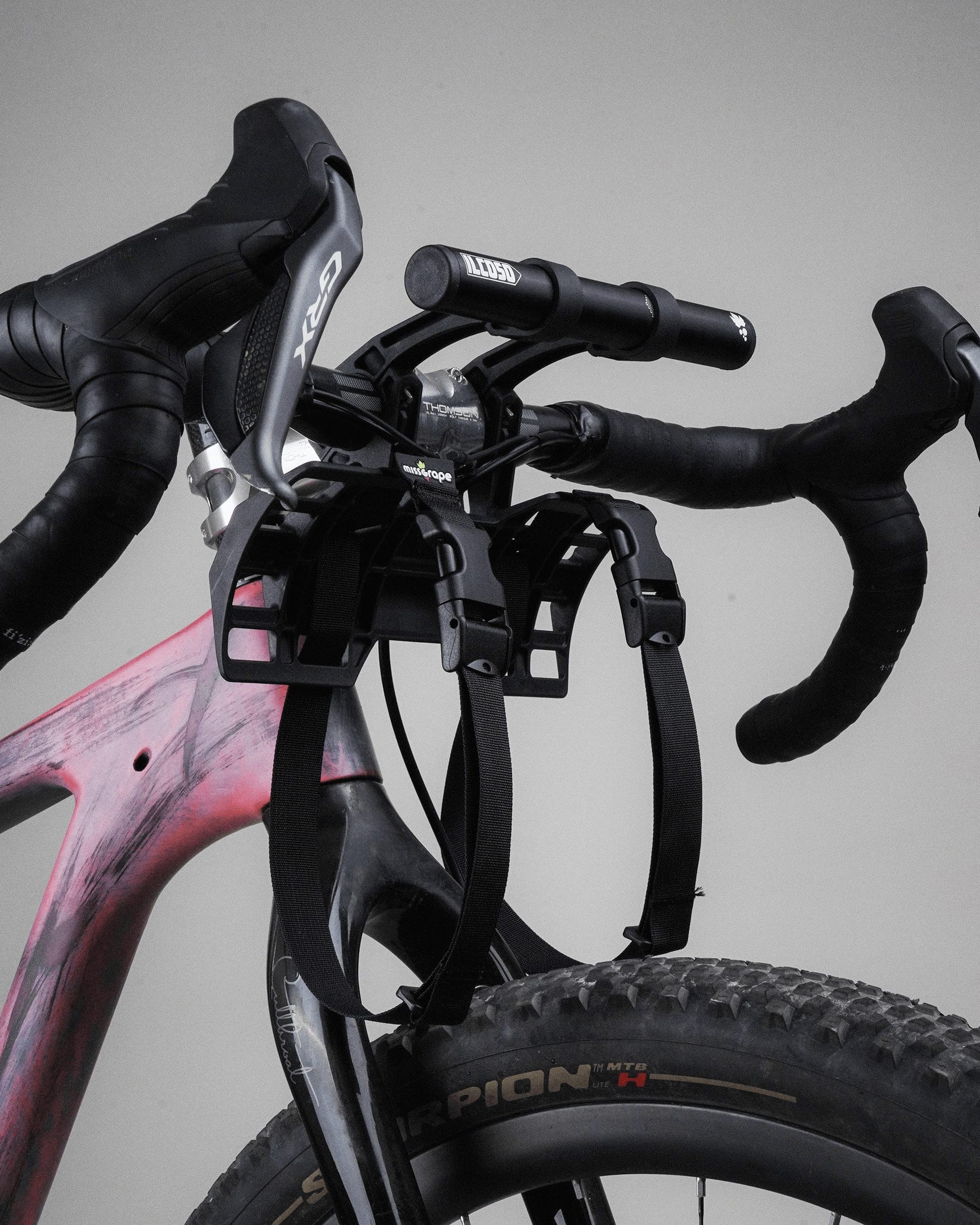

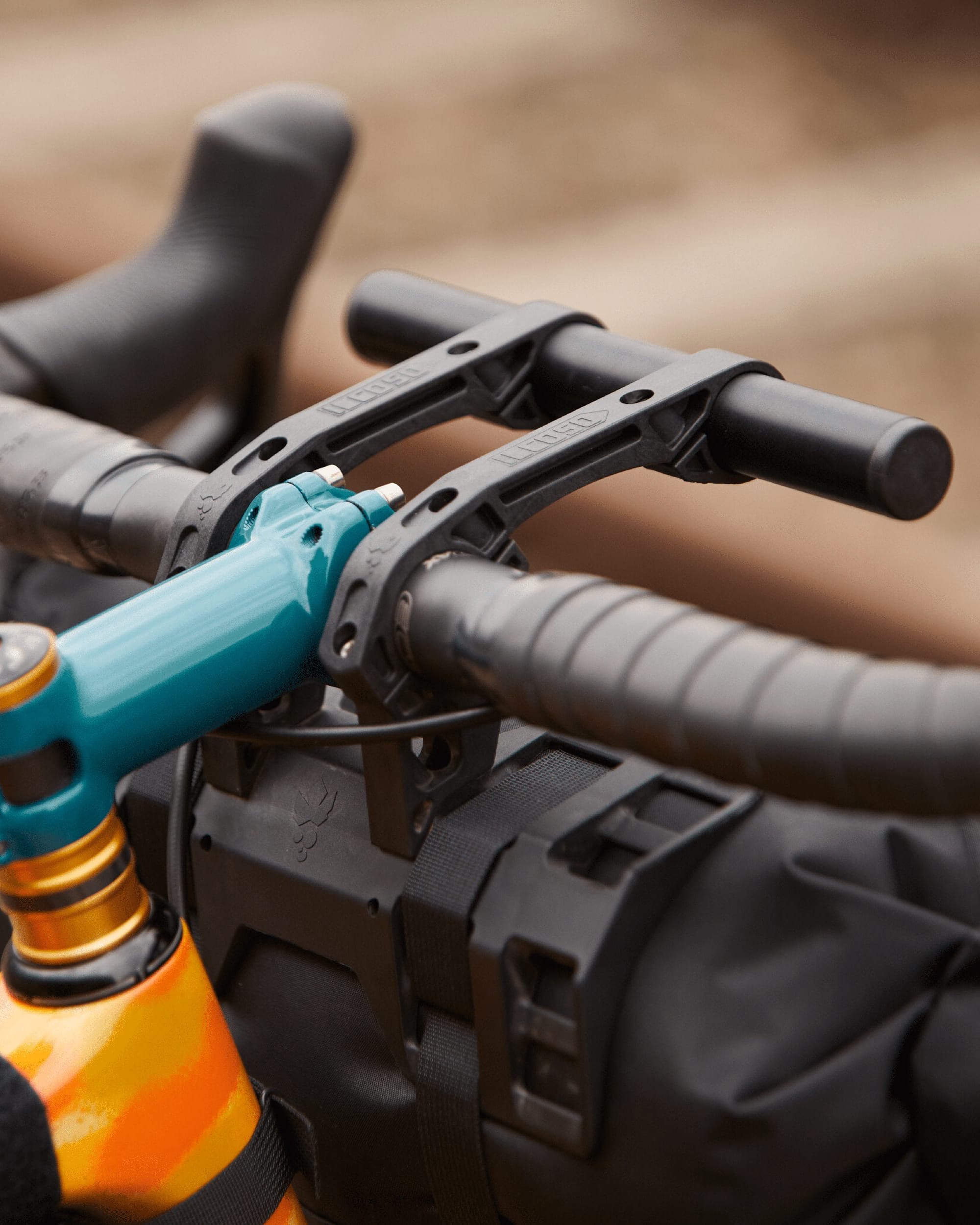

Its modularity allows it to be installed on drop bar and flat bar and to bring the bag closer to the headset thanks to its adjustments, allowing for greater riding safety .

The ILCOSO allows you to have useful space for your hands , without tangling the cables and to install, thanks to 3 position slots , a lighthouse, a GPS and possibly a telephone.

The support is made of toughened PA6 polyamide, which allows elasticity, resistance and lightness. The instrument holder tube is made of anodized aluminium.

Thanks to its composition it is possible to install the support on carbon and aluminum handlebars.

The support weighs 320 g complete with long instrument holder clamps and bag holder straps.

ILCOSO supports bags with a maximum recommended diameter of 19cm.
Maximum load capacity 3 kg.

The support can be installed on handlebars with a diameter of 31.8mm and with a minimum wheelbase of 83mm.

3 year guarantee.
We recommend using our 6.8 and 16 liter Trunk bags.

Characteristics

TAPES length

830 mm

TAPES WIDTH

25 mm

BRACKET BASE width

227 mm

BRACKET BASE HEIGHT

98mm

HANDLEBAR DIAMETER

31.8mm

WEIGHT (with long clamps and tapes)

320 gr

MAX. LOAD

3kg

Minimum requirements

  • Handlebar tube diameter 31.8mm
  • Minimum wheelbase of 83mm

Packaging

1x Bag holder base bracket
2x Short Clamps for installation without instruments
2x Long Clamps for installation with instruments
1x Anodized aluminum instrument holder tube
4x 20 mm screws for fixing the base clamp
4x 16 mm screws for instrument fixing
2x Belt locking rings
2x 83cm long bag holder belts
6x Clamp stickers
1x Postcard with QR code to the assembly video
1x Miss Grape “cluster” sticker

Review Video by bikepacking.com

Choose your configuration

Handlebar stem (Stem) > 6 cm

Rear 01

Rear 02

Handlebar stem (Stem) < 6 cm

Front 01

Front 02

Installation of ILCOSO tapes

ILCOSO screw installation
